The Engine class represents the core engine of the brush library. More...

#include <engine.h>

Collaboration diagram for Brush::Engine< T >:

[legend]

Public Member Functions
	Engine ()

	Engine (Parameters &p, SearchSpace &s)

	~Engine ()

void	print_progress (float percentage)

void	calculate_stats ()

void	print_stats (std::ofstream &log, float fraction)

void	log_stats (std::ofstream &log)

Parameters &	get_params ()

void	set_params (Parameters &p)

SearchSpace &	get_search_space ()

void	set_search_space (SearchSpace &space)

bool	get_is_fitted ()

bool	update_best ()
	updates best score by searching in the population for the individual that best fits the given data

Individual< T > &	get_best_ind ()

Engine< T > &	fit (Dataset &data)

Engine< T > &	fit (const Ref< const ArrayXXf > &X, const Ref< const ArrayXf > &y)

auto	predict (const Dataset &data)

auto	predict (const Ref< const ArrayXXf > &X)

template<ProgramType P = T> requires ((P == PT::BinaryClassifier) \|\| (P == PT::MulticlassClassifier))
auto	predict_proba (const Dataset &d)

template<ProgramType P = T> requires ((P == PT::BinaryClassifier) \|\| (P == PT::MulticlassClassifier))
auto	predict_proba (const Ref< const ArrayXXf > &X)

int	get_archive_size ()
	return archive size

vector< json >	get_archive_as_json ()
	return archive/population as strings

vector< json >	get_population_as_json ()

void	set_population_from_json (vector< json > pop_vector)

vector< Individual< T > >	get_archive ()
	return archive/popularion as individuals ready to use

vector< Individual< T > >	get_population ()

void	set_population (vector< Individual< T > > pop_vector)

void	lock_nodes (int end_depth=0, bool keep_leaves_unlocked=true)

void	run (Dataset &d)
	train the model

Public Attributes
Parameters	params
	hyperparameters of brush, which the user can interact

SearchSpace	ss

Individual< T >	best_ind
	best individual found during training

Archive< T >	archive
	pareto front archive

Population< T >	pop
	population of programs

bool	is_fitted = false
	keeps track of whether fit was called

Private Member Functions
void	init ()
	initialize Feat object for fitting.

void	set_is_fitted (bool f)
	set flag indicating whether fit has been called

Private Attributes
Selection< T >	selector
	selection algorithm

Evaluation< T >	evaluator
	evaluation code

Selection< T >	survivor
	survival algorithm

Log_Stats	stats
	runtime stats

Timer	timer
	start time of training

Detailed Description

template<ProgramType T>
class Brush::Engine< T >

The Engine class represents the core engine of the brush library.

It encapsulates the functionality for training and predicting with programs in a genetic programming framework. The Engine class manages the population of programs, selection algorithms, evaluation code, variation operators, and survival algorithms. It also provides methods for training the model, making predictions, and accessing runtime statistics.

The Engine class is parameterized by the program type T, which determines the type of programs that can be evolved and evaluated by the engine.

Definition at line 43 of file engine.h.

Constructor & Destructor Documentation

◆ Engine() [1/2]

template<ProgramType T>

Brush::Engine< T >::Engine ( )

inline

Definition at line 45 of file engine.h.

◆ Engine() [2/2]

template<ProgramType T>

Brush::Engine< T >::Engine	(	Parameters &	p,
		SearchSpace &	s )

inline

Definition at line 51 of file engine.h.

◆ ~Engine()

template<ProgramType T>

Brush::Engine< T >::~Engine ( )

inline

Definition at line 59 of file engine.h.

Member Function Documentation

◆ calculate_stats()

template<ProgramType T>

void Brush::Engine< T >::calculate_stats ( )

Definition at line 52 of file engine.cpp.

Here is the caller graph for this function:

◆ fit() [1/2]

template<ProgramType T>

Engine< T > & Brush::Engine< T >::fit	(	const Ref< const ArrayXXf > &	X,
		const Ref< const ArrayXf > &	y )

inline

Definition at line 85 of file engine.h.

◆ fit() [2/2]

template<ProgramType T>

Engine< T > & Brush::Engine< T >::fit ( Dataset & data )

inline

Definition at line 81 of file engine.h.

Here is the caller graph for this function:

◆ get_archive()

template<ProgramType T>

vector< Individual< T > > Brush::Engine< T >::get_archive ( )

return archive/popularion as individuals ready to use

Definition at line 218 of file engine.cpp.

◆ get_archive_as_json()

template<ProgramType T>

vector< json > Brush::Engine< T >::get_archive_as_json ( )

return archive/population as strings

Definition at line 182 of file engine.cpp.

Here is the call graph for this function:

◆ get_archive_size()

template<ProgramType T>

int Brush::Engine< T >::get_archive_size ( )

inline

return archive size

Definition at line 113 of file engine.h.

◆ get_best_ind()

template<ProgramType T>

Individual< T > & Brush::Engine< T >::get_best_ind ( )

inline

Definition at line 79 of file engine.h.

◆ get_is_fitted()

template<ProgramType T>

bool Brush::Engine< T >::get_is_fitted ( )

inline

Definition at line 74 of file engine.h.

◆ get_params()

template<ProgramType T>

Parameters & Brush::Engine< T >::get_params ( )

inline

Definition at line 68 of file engine.h.

◆ get_population()

template<ProgramType T>

vector< Individual< T > > Brush::Engine< T >::get_population ( )

Definition at line 229 of file engine.cpp.

◆ get_population_as_json()

template<ProgramType T>

vector< json > Brush::Engine< T >::get_population_as_json ( )

Definition at line 197 of file engine.cpp.

Here is the call graph for this function:

◆ get_search_space()

template<ProgramType T>

SearchSpace & Brush::Engine< T >::get_search_space ( )

inline

Definition at line 71 of file engine.h.

◆ init()

template<ProgramType T>

void Brush::Engine< T >::init ( )

private

initialize Feat object for fitting.

Definition at line 16 of file engine.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ lock_nodes()

template<ProgramType T>

void Brush::Engine< T >::lock_nodes	(	int	end_depth = 0,
		bool	keep_leaves_unlocked = true )

Definition at line 291 of file engine.cpp.

◆ log_stats()

template<ProgramType T>

void Brush::Engine< T >::log_stats ( std::ofstream & log )

Definition at line 119 of file engine.cpp.

Here is the caller graph for this function:

◆ predict() [1/2]

template<ProgramType T>

auto Brush::Engine< T >::predict ( const Dataset & data )

inline

Definition at line 94 of file engine.h.

Here is the caller graph for this function:

◆ predict() [2/2]

template<ProgramType T>

auto Brush::Engine< T >::predict ( const Ref< const ArrayXXf > & X )

inline

Definition at line 95 of file engine.h.

◆ predict_proba() [1/2]

template<ProgramType T>

template<ProgramType P = T>
requires ((P == PT::BinaryClassifier) || (P == PT::MulticlassClassifier))

auto Brush::Engine< T >::predict_proba ( const Dataset & d )

inline

Definition at line 103 of file engine.h.

Here is the caller graph for this function:

◆ predict_proba() [2/2]

template<ProgramType T>

template<ProgramType P = T>
requires ((P == PT::BinaryClassifier) || (P == PT::MulticlassClassifier))

auto Brush::Engine< T >::predict_proba ( const Ref< const ArrayXXf > & X )

inline

Definition at line 106 of file engine.h.

◆ print_progress()

template<ProgramType T>

void Brush::Engine< T >::print_progress ( float percentage )

Definition at line 36 of file engine.cpp.

Here is the caller graph for this function:

◆ print_stats()

template<ProgramType T>

void Brush::Engine< T >::print_stats	(	std::ofstream &	log,
		float	fraction )

Definition at line 149 of file engine.cpp.

Here is the caller graph for this function:

◆ run()

template<ProgramType T>

void Brush::Engine< T >::run ( Dataset & d )

train the model

Definition at line 352 of file engine.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set_is_fitted()

template<ProgramType T>

void Brush::Engine< T >::set_is_fitted ( bool f )

inlineprivate

set flag indicating whether fit has been called

Definition at line 154 of file engine.h.

Here is the caller graph for this function:

◆ set_params()

template<ProgramType T>

void Brush::Engine< T >::set_params ( Parameters & p )

inline

Definition at line 69 of file engine.h.

◆ set_population()

template<ProgramType T>

void Brush::Engine< T >::set_population ( vector< Individual< T > > pop_vector )

Definition at line 272 of file engine.cpp.

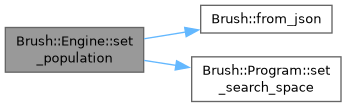

Here is the call graph for this function:

◆ set_population_from_json()

template<ProgramType T>

void Brush::Engine< T >::set_population_from_json ( vector< json > pop_vector )

Definition at line 246 of file engine.cpp.

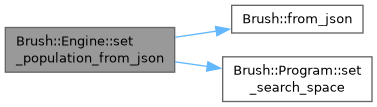

Here is the call graph for this function:

◆ set_search_space()

template<ProgramType T>

void Brush::Engine< T >::set_search_space ( SearchSpace & space )

inline

Definition at line 72 of file engine.h.

◆ update_best()

template<ProgramType T>

bool Brush::Engine< T >::update_best ( )

updates best score by searching in the population for the individual that best fits the given data

Definition at line 306 of file engine.cpp.

Here is the caller graph for this function:

Member Data Documentation

◆ archive

template<ProgramType T>

Archive<T> Brush::Engine< T >::archive

pareto front archive

Definition at line 138 of file engine.h.

◆ best_ind

template<ProgramType T>

Individual<T> Brush::Engine< T >::best_ind

best individual found during training

Definition at line 137 of file engine.h.

◆ evaluator

template<ProgramType T>

Evaluation<T> Brush::Engine< T >::evaluator

private

evaluation code

Definition at line 144 of file engine.h.

◆ is_fitted

template<ProgramType T>

bool Brush::Engine< T >::is_fitted = false

keeps track of whether fit was called

Definition at line 141 of file engine.h.

◆ params

template<ProgramType T>

Parameters Brush::Engine< T >::params

hyperparameters of brush, which the user can interact

Definition at line 134 of file engine.h.

◆ pop

template<ProgramType T>

Population<T> Brush::Engine< T >::pop

population of programs

Definition at line 139 of file engine.h.

◆ selector

template<ProgramType T>

Selection<T> Brush::Engine< T >::selector

private

selection algorithm

Definition at line 143 of file engine.h.

◆ ss

template<ProgramType T>

SearchSpace Brush::Engine< T >::ss

Definition at line 135 of file engine.h.

◆ stats

template<ProgramType T>

Log_Stats Brush::Engine< T >::stats

private

runtime stats

Definition at line 147 of file engine.h.

◆ survivor

template<ProgramType T>

Selection<T> Brush::Engine< T >::survivor

private

survival algorithm

Definition at line 145 of file engine.h.

◆ timer

template<ProgramType T>

Timer Brush::Engine< T >::timer

private

start time of training

Definition at line 149 of file engine.h.

The documentation for this class was generated from the following files:

Public Member Functions

Public Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Engine() [1/2]

◆ Engine() [2/2]

◆ ~Engine()

Member Function Documentation

◆ calculate_stats()

◆ fit() [1/2]

◆ fit() [2/2]

◆ get_archive()

◆ get_archive_as_json()

◆ get_archive_size()

◆ get_best_ind()

◆ get_is_fitted()

◆ get_params()

◆ get_population()

◆ get_population_as_json()

◆ get_search_space()

◆ init()

◆ lock_nodes()

◆ log_stats()

◆ predict() [1/2]

◆ predict() [2/2]

◆ predict_proba() [1/2]

◆ predict_proba() [2/2]

◆ print_progress()

◆ print_stats()

◆ run()

◆ set_is_fitted()

◆ set_params()

◆ set_population()

◆ set_population_from_json()

◆ set_search_space()

◆ update_best()

Member Data Documentation

◆ archive

◆ best_ind

◆ evaluator

◆ is_fitted

◆ params

◆ pop

◆ selector

◆ ss

◆ stats

◆ survivor

◆ timer
